As buildings grow taller, lighter, and more expressive, the materials that shape them are being asked to do far more than simply enclose space. Façade and interior systems today must balance structural efficiency, fire safety, sustainability, and design freedom, all while performing reliably over decades. In this context, Aluminium Honeycomb Panels have emerged as a material solution that aligns engineering logic with architectural ambition.
Originally developed for aerospace and transportation industries, honeycomb structures are now increasingly adopted in building envelopes, interiors, and infrastructure projects. Their defining advantage lies in an exceptional strength-to-weight ratio, achieved through a hexagonal cellular core inspired by nature itself. This allows panels to remain rigid and flat while significantly reducing dead load on structures.
Recognised as India’s most tested and trusted ACP, Aludecor has extended this engineering philosophy into precision-engineered honeycomb systems, supported by in-house core manufacturing, automated production lines, and rigorous testing protocols. This article explores the uses & benefits of aluminium honeycomb panels, compares them with traditional alternatives, and explains why architects are increasingly specifying them for high-performance applications.
What Are Aluminium Honeycomb Panels?

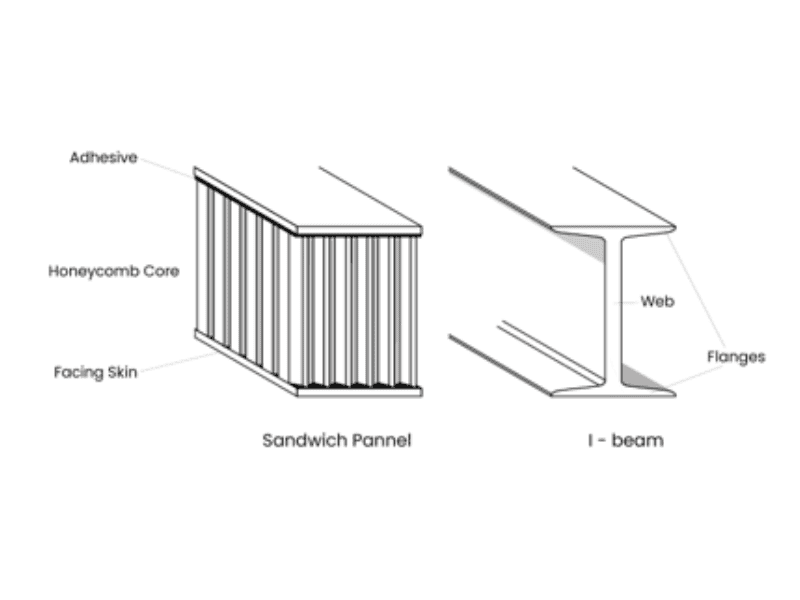

Aluminium Honeycomb Panels are sandwich panels composed of two thin aluminium face sheets bonded to a hexagonal aluminium honeycomb core. The honeycomb core functions structurally in the same way as an I-beam: the skins resist bending stresses, while the core absorbs shear forces and maintains separation between the skins, resulting in exceptional stiffness with minimal material use.
Unlike solid sheets, the honeycomb core distributes loads uniformly across the panel surface. This makes the panel lightweight, dimensionally stable, and resistant to deformation under wind pressure, vibration, or impact. The concept mirrors natural efficiency, achieving maximum strength using minimal material.
Modern honeycomb panels are manufactured using continuous roll-forming and precision adhesive systems to ensure consistent bonding, tight tolerances, and long-term structural reliability.
Key Applications: Uses of Aluminium Honeycomb Panels
The uses of aluminium honeycomb panels extend across both exterior and interior building systems, particularly where weight, flatness, and durability are critical.
Exterior Cladding & Façades
Honeycomb panels are widely used for large-format facades, high-rise cladding, and ventilated wall systems. Their low weight reduces structural load, enabling larger panel sizes without compromising safety. This is particularly valuable for airports, commercial complexes, metros, and institutional buildings.
Interior Wall Panels & Feature Walls
For interiors, honeycomb panels offer excellent flatness and surface consistency. They are frequently used in lobbies, auditoriums, hospitals, and premium commercial spaces where precision and longevity are required.
Ceilings & Soffits
The lightweight nature of honeycomb panels makes them ideal for suspended ceilings and soffits, especially in transport infrastructure and cleanroom environments where installation speed and long-term stability matter.
Partitions & Modular Systems
Honeycomb panels are also used in partitions and modular construction, offering rigidity without excessive thickness. Their sound-dampening characteristics further enhance interior comfort.
These diverse applications clearly demonstrate the uses & benefits of aluminium honeycomb panels in both functional and aesthetic contexts.
Also Read: The Honeycomb Revolution: How Nexcomb By Aludecor Is Redefining Architectural Engineering In India

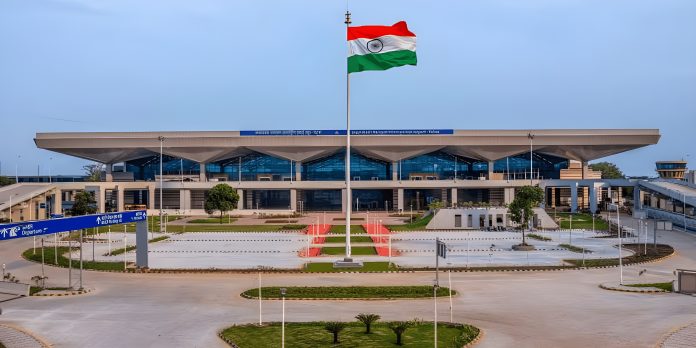

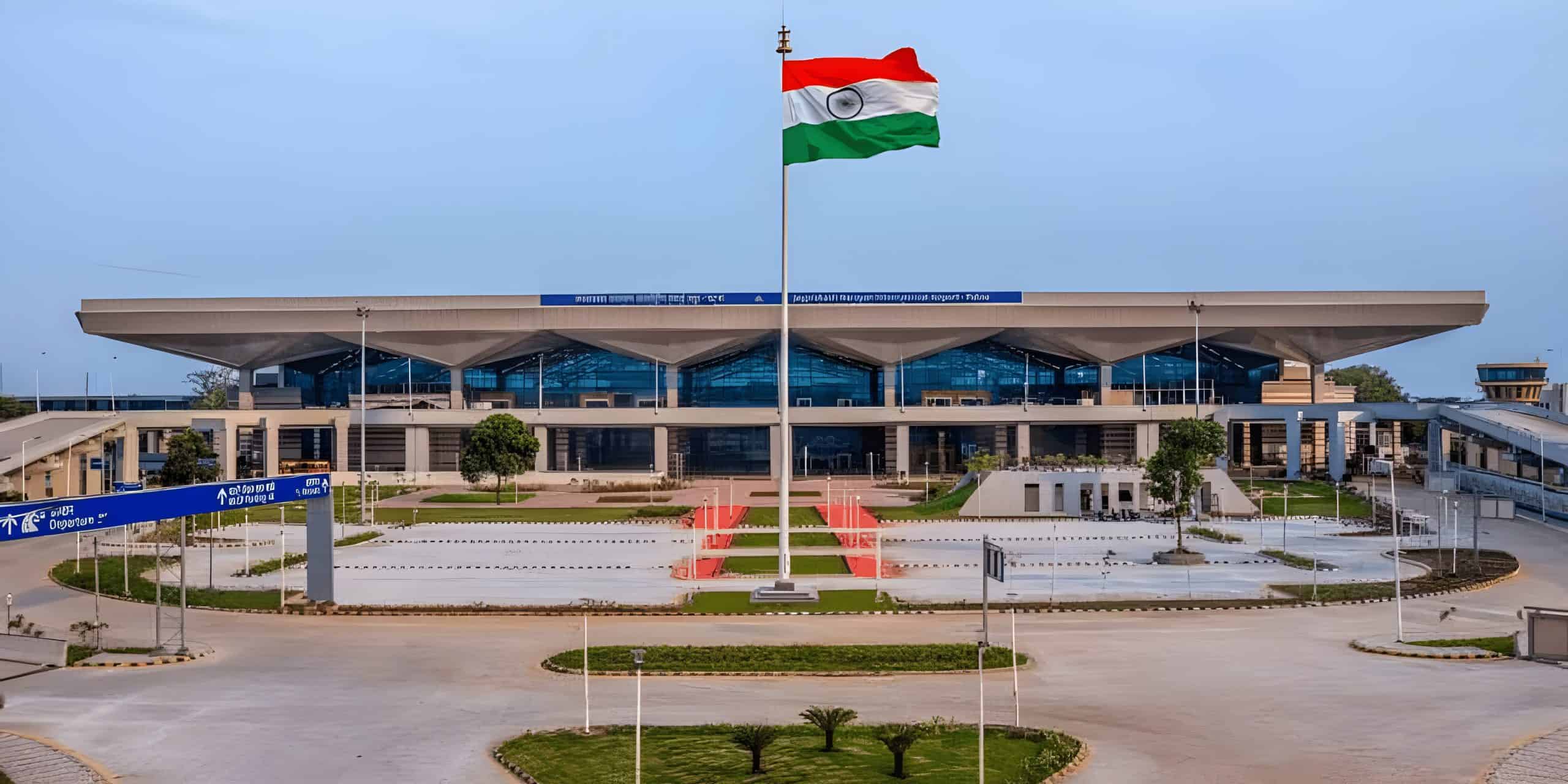

Why are honeycomb panels used in airports and metros?
Airports and metros require materials that are lightweight, fire-safe, impact-resistant, and quick to install. Honeycomb panels meet all these criteria while offering large-format coverage and long-term durability, making them ideal for transport infrastructure.
Major Benefits of Aluminium Honeycomb Panels
Lightweight Without Compromising Strength
One of the most cited uses & benefits of aluminium honeycomb panels is their unmatched strength-to-weight ratio. Compared to solid aluminium sheets or stone cladding, honeycomb panels can be up to 70–80% lighter while maintaining high structural rigidity.
This reduction in dead load:
- Minimises substructure requirements
- Improves seismic performance
- Simplifies transportation and installation
High Flatness and Dimensional Stability
Large-format façades demand surface flatness. Honeycomb construction prevents oil-canning and waviness, ensuring visual consistency across expansive elevations, a critical factor in contemporary architectural design.
High Fire Safety Performance
Nexcomb aluminium honeycomb panels combine structural efficiency with advanced fire safety. They are non-combustible and meet EN 13501-1 Class A2-s1, d0, a critical requirement for high-rise and high-risk buildings. This classification confirms controlled flame spread, zero flaming droplets, and negligible smoke emission, improving evacuation safety.
Unlike solid sheets or combustible honeycomb alternatives, Nexcomb’s hexagonal core structure slows fire propagation by acting as a natural barrier. This provides additional evacuation time and limits fire spread across façades and interiors. The system can also be manufactured with aluminium, zinc, stainless steel, wood, MDF, and FRP face materials, offering design flexibility without compromising safety.
Fire performance in Nexcomb is achieved not through material mass alone, but through intelligent structural design – making it more than just a fire-rated panel.
Sustainability and Environmental Performance
Honeycomb panels use significantly less aluminium than solid sheets, reducing embodied carbon. They are 100% recyclable and often contain recycled aluminium content, supporting circular economy goals.
Honeycomb Panels vs Traditional Alternatives
The table below highlights how Aluminium Honeycomb Panels compare with commonly used façade materials:
| Parameter | Aluminium Honeycomb Panels | Solid Aluminium Sheets | Stone Cladding | ACP (FR) |
| Weight (kg/m²) | Very Low | High | Very High | Moderate |
| Strength-to-Weight Ratio | Excellent | Moderate | Low | Moderate |
| Surface Flatness | Excellent | Moderate | Variable | Good |
| Panel Size Capability | Large | Limited | Limited | Moderate |
| Fire Performance | A2-s1, d0 | A1 | A1 | A2 |
| Installation Speed | Fast (Factory-made) | Moderate | Slow | Fast |
| Sustainability | High | Moderate | Low | Moderate |
This comparison clearly illustrates why the uses of aluminium honeycomb panels are expanding rapidly in high-performance construction.
Also Read: Aluminium Honeycomb Panels From Aludecor Powered By In-house Honeycomb Core Manufacturing
Sustainable to the Core
Nexcomb is designed for sustainability across its entire lifecycle. The honeycomb structure uses less material to achieve high strength, reducing resource consumption and waste. Panels contain up to 30% recycled aluminium and are 100% recyclable, supporting circular economy principles.
Their lightweight nature lowers transportation energy, while the cellular core improves thermal and acoustic insulation, reducing operational energy demand. High resistance to corrosion, fire, and weathering ensures long service life with minimal maintenance.
From a carbon perspective, Nexcomb panels demonstrate significantly lower emissions. While solid aluminium and ACP systems typically emit 9–13 kg CO₂e/m², a 12 mm Nexcomb panel records only 4–7 kg CO₂e/m², highlighting its advantage as a low-impact construction solution.
Are honeycomb panels more sustainable than solid panels?
From a lifecycle perspective, yes. Honeycomb panels use less material, reduce structural load, lower transportation energy, and are fully recyclable. This results in lower embodied carbon compared to solid aluminium or stone systems.
Why Architects Prefer Aluminium Honeycomb Panels
Architects increasingly favour Aluminium Honeycomb Panels because they reduce traditional trade-offs between weight, strength, and design freedom.
Design Flexibility
Honeycomb panels can be curved, inclined, folded, or cassette-formed. Radii-based façades, complex geometries, and seamless transitions become structurally feasible without excessive reinforcement.
Integration with Other Materials
Honeycomb panels integrate easily with stone veneers, glass façades, metal louvers, and ACP systems, enabling layered and textured architectural expressions
Precision Manufacturing & Consistency

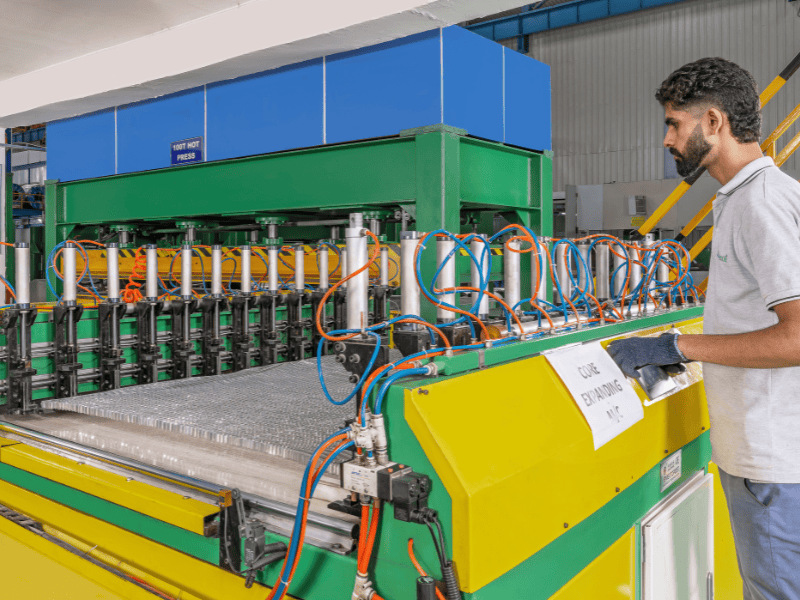

Fully automated production lines and in-house core manufacturing ensure consistent quality, bonding integrity, and repeatability, critical for large-scale projects.
Lifecycle Reliability
For architects responsible for long-term asset performance, honeycomb panels reduce maintenance cycles and replacement risk, particularly in high-access-cost façades.
Are aluminium honeycomb panels suitable for exterior use?
Yes. Aluminium Honeycomb Panels are specifically engineered for exterior applications. Their corrosion-resistant aluminium skins, weather-tested coatings, and stable core construction allow them to withstand wind loads, temperature variation, humidity, and pollution over extended periods.
Also Read: Role of Honeycomb Sheets in Durable Architectural Design | Aludecor
Conclusion
As architecture continues to push toward lighter structures, larger spans, and greater sustainability accountability, material efficiency has become non-negotiable. Aluminium Honeycomb Panels respond to this demand by combining structural logic, environmental responsibility, and architectural flexibility within a single system.
Their expanding adoption across façades, interiors, ceilings, and infrastructure underscores the wide-ranging uses & benefits of aluminium honeycomb panels in modern construction. From reduced dead load and superior flatness to fire safety and recyclability, honeycomb systems address challenges that traditional materials struggle to resolve simultaneously.
Recognised as India’s most tested and trusted ACP, Aludecor’s precision-engineered honeycomb solutions reflect an approach rooted in in-house manufacturing control, rigorous testing, and lifecycle thinking. In a built environment that increasingly values performance over perception, honeycomb panels are no longer niche solutions – they are foundational materials for the next generation of architecture.
Call us at 1800-102-0407 or visit aludecor.com/enquiry to explore ACP solutions designed for performance and long-term aesthetic value.
FAQs
Q1. What makes aluminium honeycomb panels stronger than regular panels?
Their hexagonal core distributes loads efficiently, creating high stiffness with minimal material.
Q2. Are honeycomb panels suitable for exterior use?
Yes. They are weather-resistant, fire-rated, and designed for long-term façade applications.
Q3. How long do aluminium honeycomb panels last?
With proper specification and installation, they can perform reliably for years.
