The contemporary facade engineering and architectural cladding systems today have incorporated Aluminium Composite Panels (ACP) as a fundamental material. These materials have become widely known for their aesthetic versatility. But behind the aesthetic versatility lies the real integrity behind why this material has become the real star. It’s the prominent features like structural integrity, fire behaviour, bonding strength, and long-term environmental resistance that have stood out to architects and fabricators.
These are the same feature why ACP sheets have moved away from being chosen merely for their design and versatility. But apart from these features, what makes them stand out is how they are tested and hence trusted. This is why understanding ACP Testing Methods becomes important. Understanding ACP Testing Methods Explained in detail allows professionals to evaluate things like durability benchmarks, suitability across different building typologies, and also safety compliance. Without these standardized testing protocols, the performance of ACP sheets cannot be accurately predicted under real-world stress situations such as fire exposure, wind loads, impact forces, or corrosive environments.
This is where Aludecor will help you break down a few things like how ACP sheets are tested, the important parameters evaluated in laboratories, and why these test results play a crucial role in responsible material selection.
Overview of ACP Testing
ACP testing is a systematic assessment method intended to evaluate the performance of aluminium composite panels when subjected to mechanical, environmental, and fire-induced pressures. These tests take place in controlled lab environments to simulate real-life exposure conditions and confirm compliance with national and international construction standards.
When expert technicians look into how ACP sheets are tested, they are basically assessing their performance in several important areas, like fire behavior and flammability, the strength of the bond between the core and metal, resistance to impact and corrosion, weathering and UV stability, as well as dimensional accuracy and coating effectiveness. Each of these parameters target a particular risk factor in façade applications. Fire tests are used to determine reaction-to-fire classification and smoke emission characteristics, whereas peel strength tests evaluate the long-term structural stability under conditions of thermal expansion and mechanical stress.
Testing also plays a regulatory role. A significant number of high-rise buildings, commercial ventures, and public infrastructure projects need documented proof of performance before materials are approved. Certified ACP sheet testing checklist reports offer architects and consultants with quantifiable data instead of promotional statements, allowing for specifications based on solid evidence.
When you look at technically demanding projects, the selection of ACP is heavily dependent on all of these documented performance benchmarks which reinforces the principle that material reliability must be demonstrated, not assumed.
Key ACP Testing Methods
1. Fire Resistance and Reaction-to-Fire Tests
Fire performance is one of the most important factors in assessing ACP, especially for high-rise buildings, commercial centers, airports, hospitals, and other public infrastructure projects. ACP panels undergo standardized fire reaction tests that evaluate their behavior when exposed to controlled fire conditions. These tests assess the flammability of the core material, how quickly a flame spreads, the rate at which heat is released, the amount of smoke produced, and whether flaming droplets or particles form.
According to European classification standards like EN 13501-1, ACP panels are divided into performance categories (e.g., A2-s1, d0 or B-s1, d0). These demonstrate the limited flammability, minimal smoke emission, and absence of flaming droplets characteristics. These classifications are highly significant for projects that need improved fire performance of facades. Companies such as Aludecor provide Class B fire-retardant and Class A2 fire-resistant panels that have been tested and classified according to the EN 13501-1 standards. This allows architects to match specifications with strict fire safety regulations.
For architects and facade consultants, fire test reports provide measurable data that directly influence a few important aspects like the insurance and regulatory approvals, suitability for high-rise applications, compliance with evolving building codes, and risk mitigation in densely occupied structures. Hence, when you look at the contemporary facade engineering, fire testing is not an optional validation that is needed, it is more like the crucial foundational requirement for responsible material selection.
Also Read: How Aludecor’s Fire-Tested ACP Sheets Comply with Global Safety Standards
2. Bonding (Peel Strength) Tests
The structural reliability of an ACP panel largely relies on the strength of the bond between the aluminium layers and the core material. The bonding performance is assessed using peel strength tests, which determine the force needed to detach the aluminium layer from the core under controlled conditions. This part of the ACP sheet testing checklist evaluates several factors, including the bonding strength between layers, resistance to peeling apart, performance during temperature changes, and long-term structural integrity.
In facade applications, ACP panels experience varying temperatures, wind forces, and manufacturing stresses, such as routing and folding. Poor adhesion may lead to panel distortion, blistering, or delamination over time, affecting both appearance and safety. Peel strength values offer architects and fabricators measurable confidence that the panel will retain its dimensional stability throughout its lifespan. For fabricators, in particular, robust adhesion ensures that panels can endure cutting, grooving, and bending processes without experiencing internal separation.
From a technical perspective, bonding tests confirm the effectiveness of the manufacturing quality control process by ensuring even adhesive application and reliable core-to-metal integration.

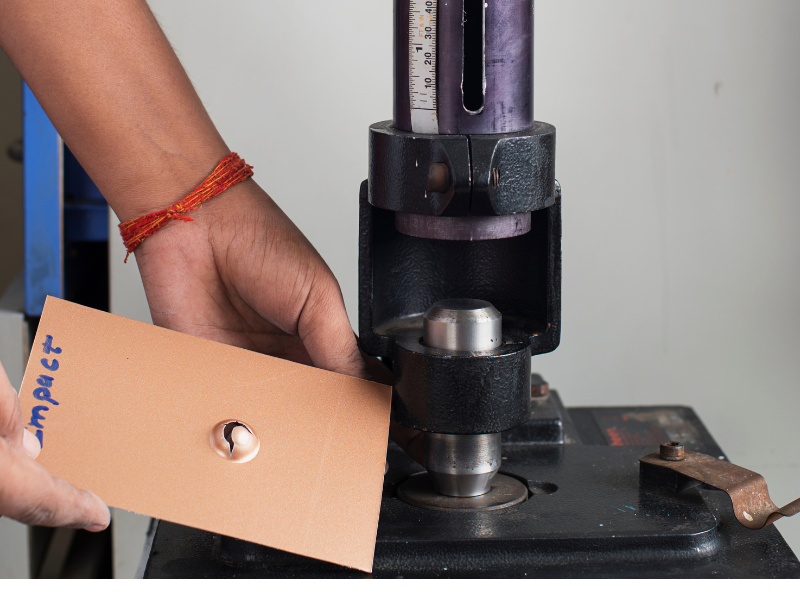

3. Impact Resistance Tests
Impact resistance testing assesses how well ACP panels withstand sudden mechanical forces without cracking, significant dents, or compromising structural stability. These tests mimic real-life situations like unintentional impact, wind-blown debris, stress from handling during installation, or contact in heavily used areas.
Typically conducted using controlled drop-weight or pendulum impact methods, the test measures several factors, including surface deformation after impact, cracking or fracture behaviour, energy absorption capacity, and post-impact structural stability. All of these factors are known to affect performance, especially in areas such as ground-level facades, commercial and retail buildings, public infrastructure, industrial environments, and more.
Panels that lack sufficient impact resistance might develop surface cracks, allowing moisture to enter, accelerate corrosion, or reduce the strength of the entire facade system. For architects, impact the ACP sheet testing checklist results help assess appropriateness based on the building’s purpose and level of exposure risk. For fabricators, it offers an understanding of managing tolerance during transit and installation. Impact testing is essential to ensure that ACP systems retain both their visual appearance and structural integrity under mechanical stress.
4. Corrosion and Weathering Tests
ACP panels used in exterior applications are continuously exposed to environmental stressors, including UV radiation, humidity, temperature fluctuations, pollutants, and, in coastal regions, salt-laden air. Corrosion and weathering tests are conducted to evaluate long-term facade performance under these conditions.
One of the primary evaluations is the salt spray (fog) test, which assesses corrosion resistance by exposing panels to a saline mist for a specified duration. This test helps determine the durability of aluminium layers and protective coatings in aggressive atmospheric conditions. Weathering tests, including accelerated UV exposure and cyclic temperature variation, measure colour retention, gloss stability, surface chalking, coating adhesion over time, and resistance to fading and degradation.
These tests simulate years of environmental exposure within controlled laboratory timelines, providing predictive data on facade lifespan. For architects specifying projects in tropical, coastal, or industrial regions, corrosion and weathering performance are decisive parameters. Poor resistance can lead to surface deterioration, aesthetic inconsistency, and increased maintenance costs.
High-performance ACP systems are engineered with advanced coating technologies and surface treatments to withstand such environmental stress, ensuring long-term dimensional stability and visual integrity.
Also Read: What Is the Salt Spray Test in ACP and Why It Matters for Coastal Projects
How Test Results Affect Material Selection
ACP test reports function as technical validation tools that guide specification decisions. For architects and facade consultants, these reports provide measurable benchmarks for fire performance, structural integrity, and environmental durability.
Fire classification data helps determine if a panel is suitable for use in high-rise, commercial, or public infrastructure projects that are subject to strict safety regulations. Ratings based on standards like EN 13501-1 help distinguish different levels of flammability and smoke characteristics, directly affecting the choice of grade.
Bond strength and impact resistance values influence the feasibility of fabrication, panel dimensions, and the long-term stability of the facade. At the same time, results from corrosion and weathering tests are especially important in coastal, humid, or industrial areas where environmental stress is much greater.
In projects focused on performance, certified test documentation moves material approval from being based on assumptions to being supported by evidence, allowing for decisions that are both risk-aware and compliant with codes.
Practical Tips for Architects and Fabricators
Although lab testing confirms performance of ACP sheets, the defining specification and installation rely on how that data is understood and used in actual projects. The following points are few pointers that can assist architects and fabricators in aligning testing findings with actual application:
- Review certified test reports, not just brochures: Make sure the documentation refers to established standards and clearly outlines the classification outcomes, particularly regarding fire performance.
- Match panel grade to building typology: High-rise and public infrastructure projects may require improved fire ratings, whereas low-rise or internal uses may allow different grades.
- Assess peel strength before fabrication planning: The integrity of the bond influences routing depth, bending radii, and the quality of edge finishing. Good adhesion lowers the chance of peeling during the manufacturing process.
- Consider environmental exposure conditions: In coastal areas or places with high humidity, give priority to ACP panels that have proven corrosion and weathering resistance.
- Evaluate coating systems for long-term facade aesthetics: UV resistance and gloss retention are extremely crucial for projects where maintaining visual consistency over time is important.
- Coordinate testing data with structural and facade consultants: An early review of technical parameters of these ACP sheets will help you avoid the need for specification changes during the approval stages.
Conclusion
ACP panels are designed systems whose functionality goes well beyond just visual appeal. From fire behavior and bonding strength to impact resistance and long-term weather durability, each test parameter is essential in determining how a facade system will function over time.
For architects and fabricators, comprehending ACP Testing Methods Explained is not just an academic pursuit but a professional obligation. Verified test data allows for well-informed specifications, guarantees adherence to regulations, and minimizes structural and safety risks in various types of buildings. As facade engineering standards keep advancing, the industry is more and more focusing on choosing materials based on their performance. In complex projects, testing is not just a routine task; it serves as the basis for ensuring reliability.
Frequently Asked Questions
What are the main tests ACP panels undergo?
ACP panels undergo fire reaction tests, peel strength tests, impact tests, corrosion (salt spray) tests, weathering tests, and coating thickness evaluations to validate safety and durability.
Why is fire testing critical for ACP sheets?
Fire testing evaluates combustibility, flame spread, and smoke emission, ensuring compliance with building codes and suitability for high-rise and public infrastructure projects.
How do peel and impact tests ensure ACP durability?
Peel tests verify bonding strength between layers, while impact tests assess resistance to mechanical stress, together ensuring long-term structural reliability.
What is the role of weathering and corrosion tests?
These tests simulate UV exposure, moisture, and saline conditions to measure colour retention, coating durability, and long-term facade performance.
